| MOQ: | Négociable |
| Prix: | Négociable |
| Emballage Standard: | Rubans en sachets plastiques puis en cartons |
| Délai De Livraison: | 5-8 jours ouvrables |
| Mode De Paiement: | T/T |
| Capacité D'approvisionnement: | 10000 petits pains par jour |
Product Description:

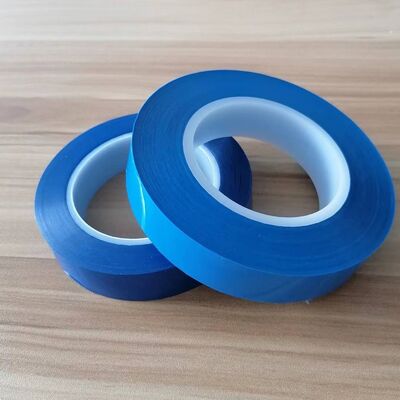

The LY-ZZ-30B is a high-performance PET (Polyester) termination tape specifically engineered for the demanding environments of modern battery manufacturing. As a critical component in battery insulation and fixing, this tape provides reliable protection and stability for energy storage solutions.
Key Features:
1.Strong Electrolyte Resistance: Formulated with a special adhesive that withstands prolonged exposure to aggressive electrolytes without degradation, ensuring long-term reliability inside the battery cell.
2.Non-Discoloring: Maintains its original color and integrity over time. It resists yellowing or fading caused by chemical reaction or heat, preventing contamination risks.
3.High Adhesion: Provides a secure hold for winding applications, preventing unwinding or shifting during battery assembly and operation.
4.Thin & Conformable: The PET backing offers excellent conformability for wrapping around sharp corners and irregular surfaces of battery cells.
Applications:
Power Battery Insulation: Used for outer wrapping and insulation protection of prismatic and cylindrical power batteries.
Lithium Battery Cell Winding: Ideal for securing the ends of cell windings (jelly rolls) to prevent telescoping and internal short circuits.
Electrode & Core Fixing: Applied for the fixation of electrodes and cores during the assembly process of lithium-ion batteries.
|
Test items/Method |
Test unit |
Test Specifications |
Test method |
|
Total thickness |
μ |
30±3 |
GB/T 7125-2014 |
|
Backing material |
μ |
20±2 |
GB/T 7125-2014 |
|
Adhesion to Steel |
(20min)N/25mm |
3-7 |
GB/T 2792-2014 |
|
Temperature Resistance |
℃ |
-20~110 |
GB/T 32368-2015 |
|
Electrolyte Resistance |
|
85℃/4h: No residue, no color fade. |
|
|
Color |
|
Blue |
Visual Check |
|
Specification |
Custom sizes available (slitting & rewinding). |
||
|
|
